M9F23206 | Schneider Electric
Circuit breaker, 2 pole, D Curve, 6 A, 277 V, DIN rail, M9F23206
Unit Price (€ / pc.)
37.9134 € *
Available: 0 pcs.
Leadtime: On Request **

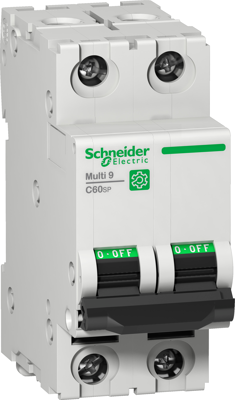

Circuit breaker, M9F23206, SCHNEIDER
The M9F23206 is a low voltage miniature circuit breaker. It is a 2P circuit breaker with 2 protected poles and 6 A In rated current and D tripping curve. The rated short circuit breaking capacity goes up to 10 kA at 415 V AC. This product protects from short circuit, earth leakage and overload.
Features
- High breaking capacity
- High rated impulse withstand voltage
- High mechanical durability
- High electrical durability
Applications
- Semiconductor industry
- Telecom industries
Technical specifications
| Auslösecharakteristik | D | |
| Bemessungsspannung | 277 V | |
| Bemessungsstrom | 6 A | |
| Montage | DIN-Schiene | |
| Nennspannung (AC) | 440 V | |
| Polzahl | 2-polig | |
| Schutzart (IP) | IP20 |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85362010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
| Nachhaltig | Yes |
