M9F23416 | Schneider Electric

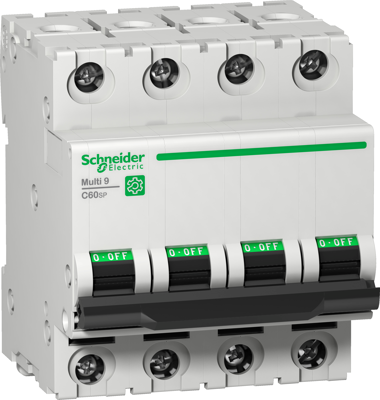

Circuit breaker, 4 pole, D Curve, 16 A, 277 V, DIN rail, M9F23416
Unit Price (€ / pc.)
71.8046 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Circuit breaker, M9F23416, SCHNEIDER
The M9F23416 is a low voltage miniature circuit breaker. It is a 4P circuit breaker with 4 protected poles and 16 A In rated current and D tripping curve. The rated short circuit breaking capacity goes up to 10 kA at 415 V AC. This product protects from short circuit, earth leakage and overload.
Features
- High breaking capacity
- High rated impulse withstand voltage
- High mechanical durability
- High electrical durability
Applications
- Semiconductor industry
- Telecom industries
Technical specifications
| Tripping characteristics | D | |
| Rated Voltage | 277 V | |
| Rated current | 16 A | |
| Assembly | DIN-Schiene | |
| Rated voltage (AC) | 440 V | |
| Pin number | 4-polig | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85362010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
| Sustainable | Yes |
