A9C22824 | Schneider Electric

Installation contactor, 4 pole, 20 A, 400 V, 4 Form A (N/O), coil 240 VAC, A9C22824

Order No.: 01P6887
EAN: 4099889419382
MPN:
A9C22824
Series: Acti 9 iCT
A9C22824 Schneider Electric Contactors

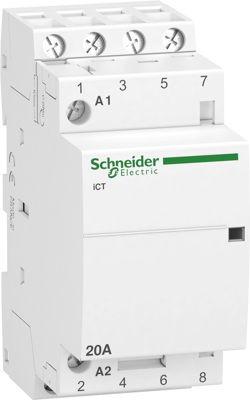

Image may differ
Unit Price (€ / pc.)
50.4560 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
50.46 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
50.4560 €

Installation contactor, A9C22824, Schneider Electric

This Acti9 iCT is a modular contactor. It is a 4P remote control device with 4 normally open contacts. The rated current is 20A for AC-7a. The Ue rated operational voltage is 400VAC. The Uc control voltage is 220VAC to 240VAC. This device could be used for control circuits. This device could be used for remote switching lighting loads, small motors (fans, mixers) or HVAC system applications. It is compatible with all the Acti9 control auxiliaries, for lighting, heating & ventilation control applications. This product is compliant with IEC/EN 61095. Electrical endurance goes up to 100000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-7B, AC-3, AC-5A or AC-5B The maximum switching operations is 6 per minute. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. Pollution degree is 2. It is DIN rail mountable. Its width is 4 pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 81mm x (H) 36mm x (D) 68.5mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60 °C. The storage temperature is from -40°C to 70°C.

Technical specifications
Ausführung Installationsschütz
Bemessungsspannung 400 V
Montage DIN-Schiene
Nennstrom 20 A
Polzahl 4-polig
Schaltfunktion 4 Schließer
Schutzart (IP) IP20
Steuerspannung 240 VAC
Logistics
Ursprungsland FR
Zolltarifnummer 85364900
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
Nachhaltig Yes
