CA2KN313P72 | Schneider Electric

Auxiliary contactor, 4 pole, 10 A, 3 Form A (N/O) + 1 Form B (N/C), coil 230 VAC, spring-clamp connection, CA2KN313P72

Order No.: 02P3799
EAN: 4099889371178
MPN:
CA2KN313P72
Series: TeSys SK, K, D
Schneider Electric
CA2KN313P72 Schneider Electric Contactors
Image may differ
Unit Price (€ / pc.)
41.5429 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
41.54 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
41.5429 €

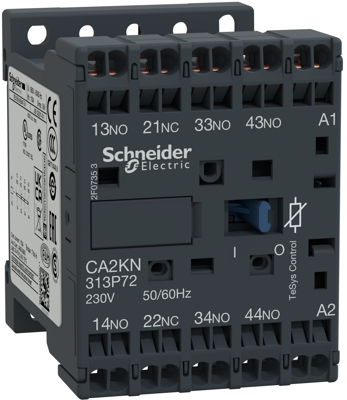

Control relay, CA2KN313P72, Schneider Electric

TeSys K control relay, 4 contacts (3NO + 1NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 230V 50/60Hz AC control circuit and equipped with a surge suppression device, connection by spring terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).

Technical specifications
Connection spring-clamp connection
Version auxiliary contactor
rated voltage (AC) 690 V
Assembly DIN rail
Rated current 10 A
Pin number 4 pole
Latching switching function 3 Form A (N/O) + 1 Form B (N/C)
Degree of protection (IP) IP2X
Control Voltage 230 VAC
Logistics
Country of origin FR
Customs tariff number 85364900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Sustainable Yes
