CA2KN40G7 | Schneider Electric
Auxiliary contactor, 4 pole, 10 A, 4 Form A (N/O), coil 120 VAC, screw connection, CA2KN40G7
Unit Price (€ / pc.)
35.9975 € *
Available: 0 pcs.
Leadtime: On Request **

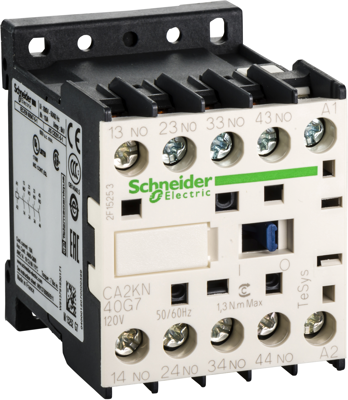

Control relay, CA2KN40G7, Schneider Electric
TeSys K control relay, 4 contacts (4NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 120V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).
Technical specifications
| Connection | screw connection | |
| Version | auxiliary contactor | |
| rated voltage (AC) | 690 V | |
| Assembly | DIN rail/screw | |
| Rated current | 10 A | |
| Pin number | 4 pole | |
| Latching switching function | 4 Form A (N/O) | |
| Degree of protection (IP) | IP2X | |
| Control Voltage | 120 VAC |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
