CA3SK20BD | Schneider Electric

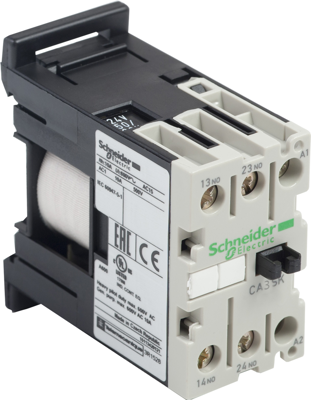

Auxiliary contactor, 2 pole, 10 A, 2 Form A (N/O), coil 24 VDC, screw connection, CA3SK20BD
Unit Price (€ / pc.)
39.0201 € *
Available: 0 pcs.
Leadtime: On Request **
Control relay, CA3SK20BD, Schneider Electric
TeSys SK mini-control relay, 2 contacts (2NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V DC control circuit with no inrush consumption, connection by screw terminals. For operating rates until 20 cycles/min and ambient temperature -20/+50°C, it procures high reliability and durability. Compact (27mm width), for clipping on a 35mm DIN rail. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).
Technical specifications
| Connection | screw connection | |
| Version | auxiliary contactor | |
| rated voltage (AC) | 690 V | |
| Assembly | DIN rail/screw | |
| Rated current | 10 A | |
| Pin number | 2 pole | |
| Latching switching function | 2 Form A (N/O) | |
| Degree of protection (IP) | IP2X | |
| Control Voltage | 24 VDC |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85364190 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
