GC2530M6 | Schneider Electric
Installation contactor, 3 pole, 25 A, 250 VAC, 3 Form A (N/O), coil 240 VAC, screw connection, GC2530M6
Unit Price (€ / pc.)
53.5976 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
53.60 € *
Price list
Quantity
Price per unit*
1 pcs.
53.5976 €
2 pcs.
51.4437 €
3 pcs.
49.4683 €
*incl. VAT plus shipping costs
**Subject to prior sale

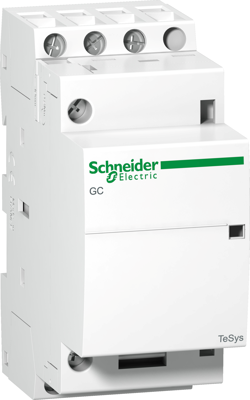

Installation contactor, GC2530M6, Schneider Electric
TeSys GC modular contactor, 3 poles (3NO), 25A/415V AC-7a (heating) and 8.5A/415V AC-7b (motor control), for household applications. Control voltage 220-240V AC 60Hz, state indicator on front. For use in modular panels, compact (36mm width), clipping on 35mm DIN rail, connection by screw terminals. Sold in lots of 6 units. Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE), Green Premium compliant (RoHS/REACh).
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Installationsschütz | |
| Bemessungsspannung | 250 VAC | |
| Montage | DIN-Schiene | |
| Nennstrom | 25 A | |
| Polzahl | 3-polig | |
| Schaltfunktion | 3 Schließer | |
| Schutzart (IP) | IP20/IP40 | |
| Steuerspannung | 240 VAC |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85364900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
| Nachhaltig | Yes |
