LADN206 | Schneider Electric

Auxiliary switch block, 2 pole, 10 A, 2 Form A (N/O), ring cable lug terminals, LADN206

Order No.: 03P0992
EAN: 4099889373196
MPN:
LADN206
Series: TeSys D
Schneider Electric
LADN206 Schneider Electric Contactors
Image may differ
Unit Price (€ / pc.)
9.7818 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9.78 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
9.7818 €

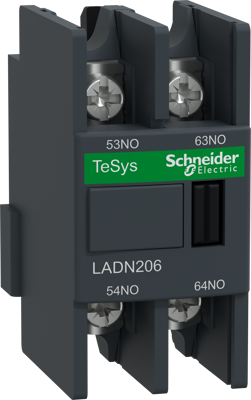

Auxiliary switch block, LADN206, Schneider Electric

TeSys D instantaneous auxiliary contact block, for contactors LC1D, LC1F. It provides 2NO contacts rated up to 10A 690V AC, connection by ring lugs screw terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Technical specifications
Connection ring cable lug terminals
Version auxiliary switch block
rated voltage (AC) 690 V
Assembly front mounting
Rated current 10 A
Pin number 2 pole
Latching switching function 2 Form A (N/O)
Degree of protection (IP) IP20
Logistics
Country of origin FR
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Sustainable Yes
