LC1D115004M7 | Schneider Electric
Power contactor, 4 pole, 200 A, 4 Form A (N/O), coil 220 VAC, screw connection, LC1D115004M7
Unit Price (€ / pc.)
625.9757 € *
Available: 0 pcs.
Leadtime: On Request **

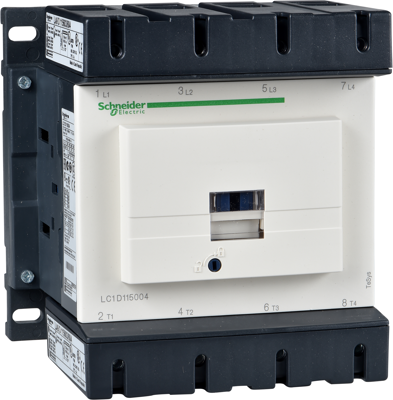

Power contactor, LC1D115004M7, Schneider Electric
TeSys D contactor, 4-pole (4NO), for non-inductive load applications up to 200A/1000V AC-1. It provides a 220V 50/60Hz AC coil with transient suppressor module, power connection by screw connectors 2 inputs, control connection by screw clamp terminals. For operating rates until 2400 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (150mm width), mounting on 2 DIN-rails or screw fixing. Without build-in auxiliary contacts, side and front mounting auxiliary contact blocks available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Technical specifications
| Connection | screw connection | |
| Version | power contactor | |
| rated voltage (AC) | 440 V | |
| Assembly | DIN rail/screw | |
| Rated current | 200 A | |
| Pin number | 4 pole | |
| Latching switching function | 4 Form A (N/O) | |
| Degree of protection (IP) | IP20 | |
| Control Voltage | 220 VAC |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, Orange lead [lead(II, IV)-oxide] |
| Sustainable | Yes |
