LC1D123P7 | Schneider Electric

Power contactor, 3 pole, 12 A, 400 V, 3 Form A (N/O), coil 230 VAC, spring-clamp connection, LC1D123P7

Order No.: 03P1277
EAN: 4099889374902
MPN:
LC1D123P7
Series: TeSys LC1D

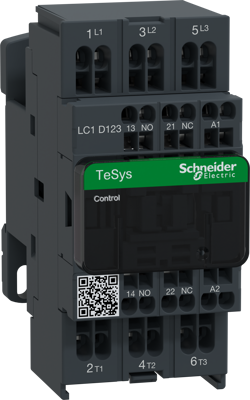

LC1D123P7 Schneider Electric Contactors
Image may differ
Unit Price (€ / pc.)
44.625 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
44.63 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
44.625 €

Power contactor, LC1D123P7, Schneider Electric

TeSys D contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3 (5.5kW@400V). It provides a 230V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by spring terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical specifications
Anschluss Federklemmanschluss
Ausführung Leistungsschütz
Bemessungsspannung (AC) 440 V
Bemessungsspannung 400 V
Montage DIN-Schiene
Nennstrom 12 A
Polzahl 3-polig
Schaltfunktion 3 Schließer
Schutzart (IP) IP20
Steuerspannung 230 VAC
Logistics
Ursprungsland ID
Zolltarifnummer 85364900
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
Nachhaltig Yes
