LC1D128RD | Schneider Electric
Power contactor, 4 pole, 25 A, 2 Form A (N/O) + 2 Form B (N/C), coil 440 VDC, screw connection, LC1D128RD
Unit Price (€ / pc.)
96.9731 € *
Available: 0 pcs.
Leadtime: On Request **

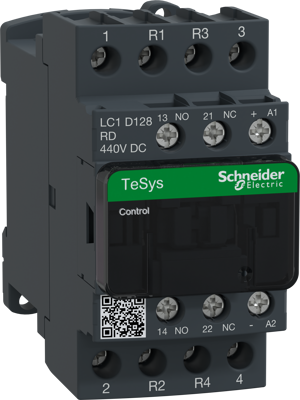

Power contactor, LC1D128RD, Schneider Electric
TeSys D contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 25A/690V AC-1. It provides a 440V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Technical specifications
| Connection | screw connection | |
| Version | power contactor | |
| rated voltage (AC) | 440 V | |
| Assembly | DIN rail/screw | |
| Rated current | 25 A | |
| Pin number | 4 pole | |
| Latching switching function | 2 Form A (N/O) + 2 Form B (N/C) | |
| Degree of protection (IP) | IP20 | |
| Control Voltage | 440 VDC |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
