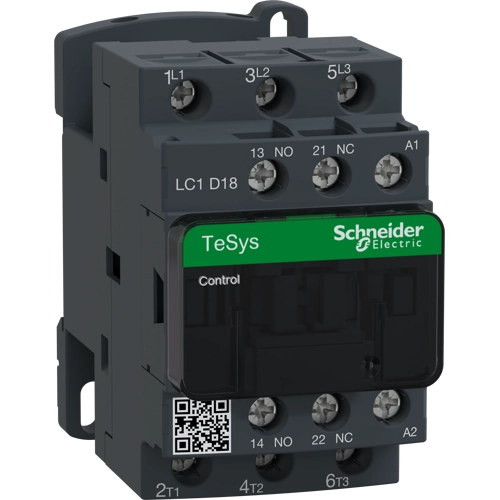

LC1D18P7 | Schneider Electric
Power contactor, 3 pole, 18 A, 690 V, 3 Form A (N/O), coil 230 VAC, screw connection, LC1D18P7
Unit Price (€ / pc.)
55.7396 € *
Available: 12 pcs.
Leadtime: On Request **
Total Price:
55.74 € *
Price list
Quantity
Price per unit*
1 pcs.
55.7396 €
5 pcs.
54.2283 €
*incl. VAT plus shipping costs
**Subject to prior sale
Standard contactors, LC1D18P7, Schneider Electric
Standard contactors 0,06 -75 kW Besides an attractive and functional design, the contactors TeSys D offer quick and easy installation with a narrow width of 45 or 55 mm. They meet international standards. The power ratings 40 to 65 A are equipped with EverLink terminals. These are patented and guarantee a reliable and durable connection.
Technical data
- Connection type main circuit: Screw connection
- Number of auxiliary contacts as make contacts: 1
- Number of auxiliary contacts as break contacts: 1
- Number of break contacts as main contacts: 0
- Rated operating power at AC-3, 400 V: 8 kW
Technical specifications
| Connection | screw connection | |
| Version | power contactor | |
| rated voltage (AC) | 440 V | |
| Rated Voltage | 690 V | |
| Assembly | DIN rail/screw | |
| Rated current | 18 A | |
| Pin number | 3 pole | |
| Latching switching function | 3 Form A (N/O) | |
| Degree of protection (IP) | IP20 | |
| Control Voltage | 230 VAC |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
