LC1DFKV7 | Schneider Electric
Contactor, 3 pole, 3 Form A (N/O), coil 400 VAC, screw connection, LC1DFKV7
Unit Price (€ / pc.)
87.5007 € *
Available: 0 pcs.
Leadtime: 1 Week **

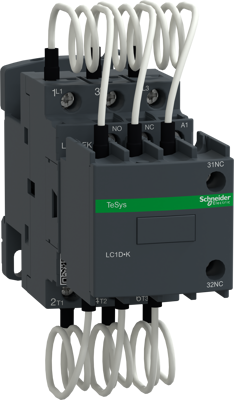

Capacitor contactor, LC1DFKV7, Schneider Electric
TeSys D contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 12.5kVAR@400V 50Hz (21kVAR@690V). It provides a 400V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Certified IEC 60947 and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).
Technical specifications
| Connection | Schraubanschluss | |
| Version | Schütz | |
| rated voltage (AC) | 690 V | |
| Assembly | DIN-Schiene/Schraube | |
| Pin number | 3-polig | |
| Latching switching function | 3 Schließer | |
| Control Voltage | 400 VAC |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
