LC1DTKP7 | Schneider Electric
Capacitor contactor, 3 pole, 415 V, 3 Form A (N/O), coil 230 VAC, screw connection, LC1DTKP7
Unit Price (€ / pc.)
351.6093 € *
Available: 0 pcs.
Leadtime: On Request **

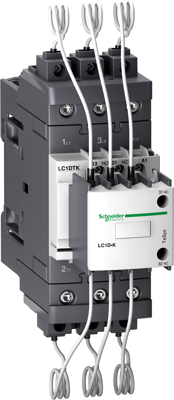

Capacitor contactor, LC1DTKP7, Schneider Electric
TeSys D contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 40kVAR@400V 50Hz (67kVAR@690V). It provides a 230V 50/60 Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA) and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).
Technical specifications
| Connection | screw connection | |
| Version | Capacitor contactor | |
| rated voltage (AC) | 440 V | |
| Rated Voltage | 415 V | |
| Assembly | DIN rail/screw | |
| Pin number | 3 pole | |
| Latching switching function | 3 Form A (N/O) | |
| Control Voltage | 230 VAC |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
