LC1K06105B7 | Schneider Electric
Power contactor, 3 pole, 6 A, 400 V, 3 Form A (N/O), coil 24 VAC, solder connection, LC1K06105B7
Unit Price (€ / pc.)
32.2847 € *
Available: 0 pcs.
Leadtime: On Request **

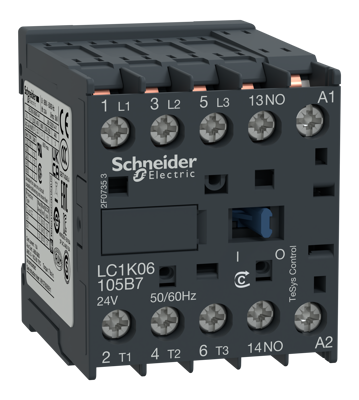

Power contactor, LC1K06105B7, Schneider Electric
TeSys K contactor, 3 poles (3NO), for motor control applications up to 6A/690V AC-3 (2.2kW@400V). It provides a 24V 50/60Hz AC coil, 1NO built-in auxiliary contact, connection by solder pins for printed circuit boards. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Technical specifications
| Connection | solder connection | |
| Version | power contactor | |
| rated voltage (AC) | 440 V | |
| Rated Voltage | 400 V | |
| Assembly | PCB mounting | |
| Rated current | 6 A | |
| Pin number | 3 pole | |
| Latching switching function | 3 Form A (N/O) | |
| Degree of protection (IP) | IP2X | |
| Control Voltage | 24 VAC |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85364190 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
