LC2D40AB7 | Schneider Electric
Reversing contactor, 3 pole, 40 A, 400 V, 3 Form A (N/O), coil 24 VAC, screw connection, LC2D40AB7
Order No.: 03P3136
EAN: 4099889386165
MPN:
LC2D40AB7
Unit Price (€ / pc.)
327.9640 € *
Available: 0 pcs.
Leadtime: On Request **

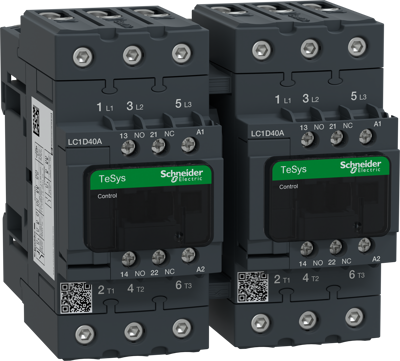

Reversing contactor combination, LC2D40AB7, Schneider Electric
TeSys D reversing contactor, 3 poles (3NO), for motor control applications up to 40A/590V AC-3 (18.5kW@400V). It provides 24V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), power connection by EverLink BTR screw connectors, control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (119mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Technical specifications
| Connection | screw connection | |
| Version | reversing contactor | |
| rated voltage (AC) | 440 V | |
| Rated Voltage | 400 V | |
| Assembly | DIN rail/screw | |
| Rated current | 40 A | |
| Pin number | 3 pole | |
| Latching switching function | 3 Form A (N/O) | |
| Degree of protection (IP) | IP20 | |
| Control Voltage | 24 VAC |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85364190 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
