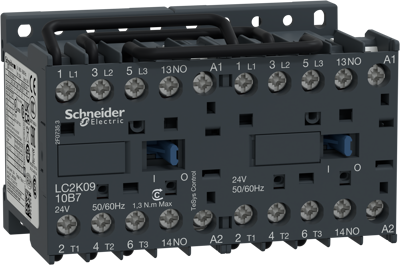

LC2K0910B7TQ | Schneider Electric
Reversing contactor, 3 pole, 9 A, 400 V, 3 Form A (N/O), coil 24 VAC, screw connection, LC2K0910B7TQ
Order No.: 03P3347
EAN: 4099889387230
MPN:
LC2K0910B7TQ
Unit Price (€ / pc.)
74.1965 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
74.20 € *
Price list
Quantity
Price per unit*
1 pcs.
74.1965 €
2 pcs.
71.2334 €
3 pcs.
68.4964 €
*incl. VAT plus shipping costs
**Subject to prior sale
Reversing contactor combination, LC2K0910B7TQ, Schneider Electric
TeSys K reversing contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). It provides 24V 50/60Hz AC coils, 2NO built-in auxiliary contacts, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Pack of 15 units. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Wendeschütz | |
| Bemessungsspannung (AC) | 440 V | |
| Bemessungsspannung | 400 V | |
| Montage | DIN-Schiene/Schraube | |
| Nennstrom | 9 A | |
| Polzahl | 3-polig | |
| Schaltfunktion | 3 Schließer | |
| Schutzart (IP) | IP2X | |
| Steuerspannung | 24 VAC |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85364190 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
| Nachhaltig | Yes |
