LP1D80004BD | Schneider Electric

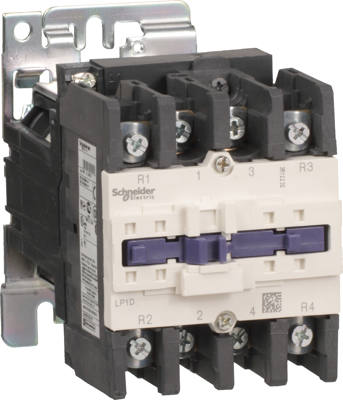

Power contactor, 4 pole, 125 A, 4 Form A (N/O), coil 24 VDC, screw connection, LP1D80004BD
Unit Price (€ / pc.)
573.937 € *
Available: 0 pcs.
Leadtime: On Request **
Power contactor, LP1D80004BD, Schneider Electric
TeSys D contactor, 4-pole (4NO), for non-inductive load applications up to 125A/1000V AC-1. It provides a 24V DC coil, power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (96mm width), DIN-rail mounting or screw fixing. Without build-in auxiliary contacts, front mounting auxiliary contact blocks can be added (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Technical specifications
| Connection | screw connection | |
| Version | power contactor | |
| rated voltage (AC) | 440 V | |
| Assembly | DIN rail/screw | |
| Rated current | 125 A | |
| Pin number | 4 pole | |
| Latching switching function | 4 Form A (N/O) | |
| Degree of protection (IP) | IP20 | |
| Control Voltage | 24 VDC |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85364190 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
