XACA2173 | Schneider Electric
Pendant pushbutton, 2 pushbutton with protective cap, 1 emergency stop/emergency off button, 4 Form A (N/O) + 1 Form B (N/C), latching, XACA2173
Unit Price (€ / pc.)
76.8264 € *
Available: 0 pcs.
Leadtime: On Request **

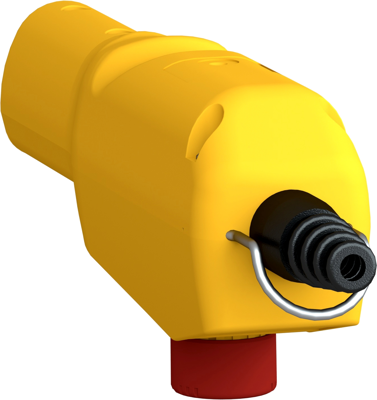

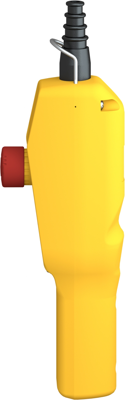

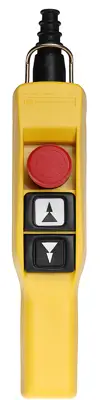

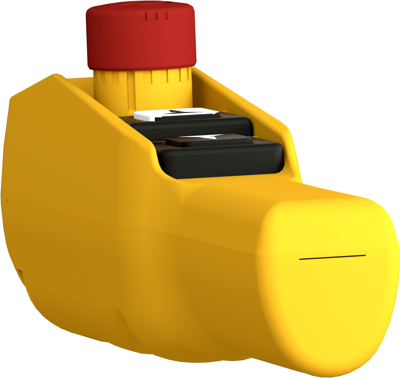

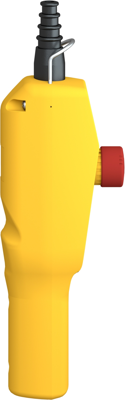

Pendant control station, XACA2173, Schneider Electric
This yellow, complete ready to use, pendant station for control circuits is designed for control of 2-speed hoist motors. Its pistol grip design makes it very intuitive and comfortable for the operator to use. It comprises a polypropylène enclosure with 2 booted push buttons mechanically interlocked and 1 trigger action latching emergency stop diameter 30mm operator. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards.
Technical specifications
| Version | 2 pushbutton with protective cap, 1 emergency stop/emergency off button | |
| Colour | yellow | |
| Shell size | 101 x 52 x 295 mm | |
| Contact function | latching | |
| Latching switching function | 4 Form A (N/O) + 1 Form B (N/C) | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
