XACA6913 | Schneider Electric
Pendant pushbutton, 7 pushbutton, 1 emergency stop button, 10 Form A (N/O) + 6 Form B (N/C), XACA6913
Unit Price (€ / pc.)
246.2586 € *
Available: 0 pcs.
Leadtime: On Request **

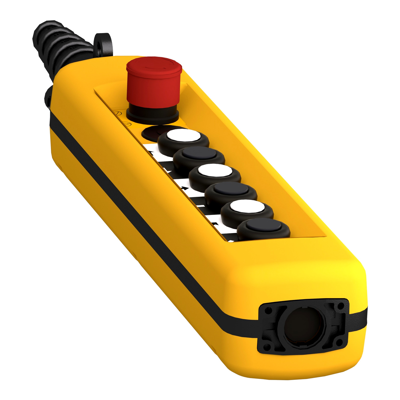

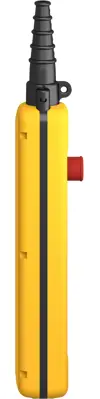

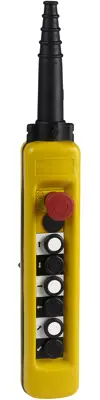

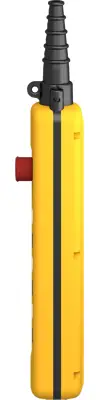

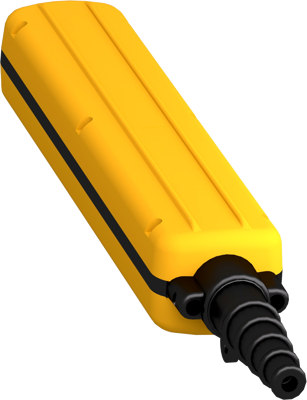

Pendant control station, XACA6913, Schneider Electric
This Harmony XAC, yellow pendant station for hoist motor has 2-speed, operates with slow break mechanism. This pendant station for hoist motor is designed for standard or medium-duty control circuit applications in your machines. It has 5 push buttons and 1 emergency stop with "raise", "lower", "left", "right", "forward" markings, with normally open and normally close contact. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It offers movement in 2 speeds (low and high) for each movements. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Technical specifications
| Version | 7 pushbutton, 1 emergency stop button | |
| Colour | yellow | |
| Shell size | 107 x 80 x 500 mm | |
| Latching switching function | 10 Form A (N/O) + 6 Form B (N/C) | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85371098 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
