XALFP7005E | Schneider Electric
Enclosure for elevator inspection, 1 emergency stop/emergency off button, 4 pushbutton, 2 selector switch, 1 socket outlet, 10 Form A (N/O) + 4 Form B (N/C), latching, XALFP7005E
Unit Price (€ / pc.)
317.4325 € *
Available: 0 pcs.
Leadtime: On Request **

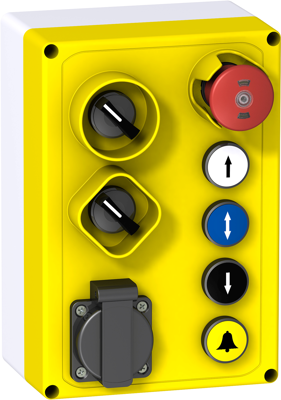

Surface mounted housing, XALFP7005E, Schneider Electric
This surface-mounted housing in light grey/yellow has 8 22 mm holes and is factory-equipped with 1 emergency stop switch, 4 push-buttons, 2 selector switches and 1 socket. You also have the flexibility to choose between front and base mounting for the auxiliary switches. This complete enclosure is therefore ideally suited for direct use. Suitable for international use due to the large number of existing product standards and certifications.
Technical specifications
| Version | 1 emergency stop/emergency off button, 4 pushbutton, 2 selector switch, 1 socket outlet | |
| Colour | yellow | |
| Shell size | 131 x 150 x 220 mm | |
| Contact function | latching | |
| Latching switching function | 10 Form A (N/O) + 4 Form B (N/C) | |
| Degree of protection (IP) | IP44 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85371098 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
