RSB2A080FD | Schneider Electric
Interface relay 2 Form C (NO/NC), 30250 Ω, 8 A, 110 V (DC), RSB2A080FD
Unit Price (€ / pc.)
7.1995 € *
Available: 0 pcs.
Leadtime: On Request **

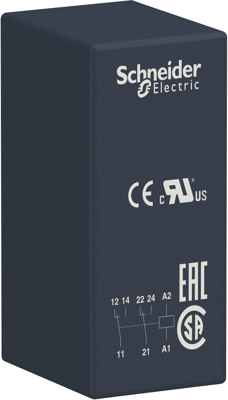

Interfacing plug-in relay, RSB2A080FD, Schneider Electric
This Zelio RSB interfacing plug-in relay has a control coil voltage of 110V DC and has 2 changeover contacts double pole double throw with a rating of 8A. It helps to reduce the size of enclosures and increases machine reliability: you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts.
Technical specifications
| Anschluss | Steckanschluss | |
| Ausführung | Interfacerelais | |
| Kontaktart | 2 Wechsler | |
| Kontaktmaterial | AgNi | |
| Nennspannung (DC) | 110 V | |
| Nennstrom | 8 A | |
| Schutzart (IP) | IP40 | |
| Spulenwiderstand | 30250 Ω |
Download
Logistics
| Ursprungsland | AT |
| Zolltarifnummer | 85364900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Hexahydromethylphthalsäureanhydrid |
| Nachhaltig | Yes |
