RXG21BD | Schneider Electric
Interface relay 2 Form C (NO/NC), 24 V (DC), 1100 Ω, 5 A, 24 V (DC), RXG21BD
Unit Price (€ / pc.)
7.0924 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
7.09 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0924 €
5 pcs.
6.7592 €
10 pcs.
6.4617 €
15 pcs.
6.1047 €
20 pcs.
5.7834 €
*incl. VAT plus shipping costs
Subject to prior sale

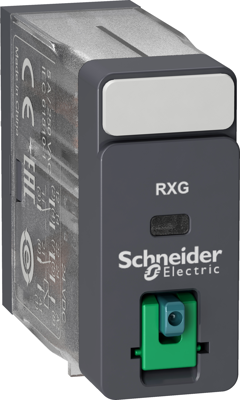

Pluggable interface relay, RXG21BD, Schneider Electric
Pluggable interface relay in 13 mm width for mounting in the plug-in base by means of robust flat pins. Two relay changers can be loaded up to 5 A each. Mechanical display of the switch position visible in the front (no LED display available). Test lever and test button for testing the switchover or for inching operation, can be operated without tools. Transparent side cover for visual inspection of the contact.
Technical data
- Width: 13 mm
- Height:
- 34 mm
- Depth: 29 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | interface relay | |
| Contact type | 2 Form C (NO/NC) | |
| Rated current | 5 A | |
| Coil voltage (DC) | 24 V | |
| Rated voltage (DC) | 24 V | |
| Coil resistance | 1100 Ω | |
| Connection | plug-in connection | |
| Contact material | silver | |
| Degree of protection (IP) | IP40 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| RoHS conform | Yes |
| SVHC free | Yes |
