RXG25P7 | Schneider Electric
Interface relay 2 Form C (NO/NC), 23500 Ω, 5 A, 230 V (AC), RXG25P7

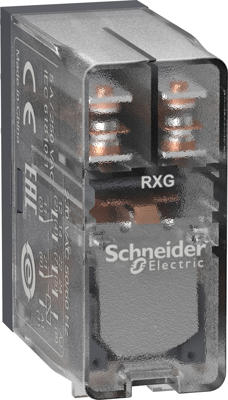

Plug-in relay socket, RXG25P7, Schneider Electric
This Zelio RXG plug-in relay socket has a coil control voltage of 230V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A. It has large choice of number of contacts for high rated current use with space-saving design. The faston pin terminal mounts quickly and securely. It helps to reduce the size of enclosures and increase machine reliability: you can mount nearly everywhere. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs).
Connection | plug-in connection | |
Version | interface relay | |
Contact type | 2 Form C (NO/NC) | |
Contact material | AgSnO2In2O3 | |
Rated voltage (AC) | 230 V | |
Rated current | 5 A | |
Degree of protection (IP) | IP40 | |
Coil resistance | 23500 Ω |
Country of origin | CN |
Customs tariff number | 85364900 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
Sustainable | Yes |
