CCT15840 | Schneider Electric

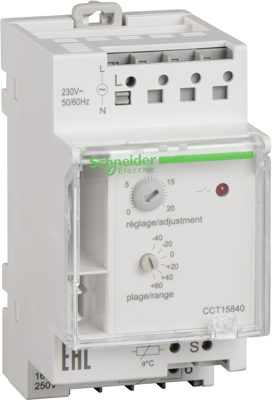

Thermostat, CCT15840, Schneider Electric

TH7 Thermostat. For industrial premises stretching from cold storage to ovens, TH7 thermostat monitors and regulates temperature from -40°C to +80°C with a wide setting range. It can also be used for frost protections at home. Delivered without probe. Supply voltage: AC 230 V ± 10 %. Frequency: 50/60 Hz. Output change-over switch: 16 A/250 V cos Phi 1. 3 A/250 V cos Phi 0.6. Consumption: 4 VA. Temperature difference (difference in temperature between switch-on and switch-off): ± 0.2 degrees. Operating temperature: -10°C to +55°C. Storage temperature: -20°C to +60°C. Degree of protection: IP20B as per EN 60529. Connection terminals: 2 x 0.5 to 2.5 mm2, rigid and flexible wires. Overall dimensions: 5 modules.
