Floor heating controller, 24 VAC, 0 to 50 °C, white, for Wiser hub generation 2, CCTFR6620

Order No.: 03P4405
EAN: 3606482072596
MPN:
CCTFR6620
Series: Wiser

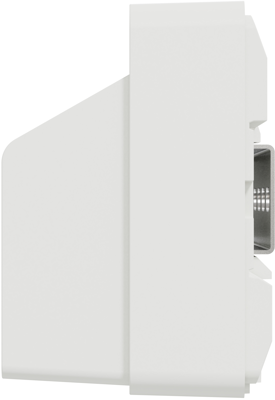

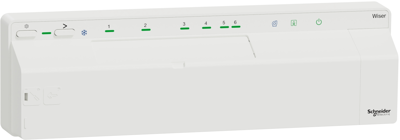

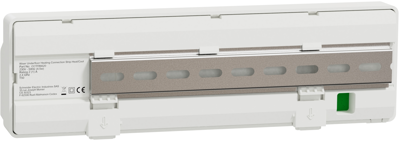

CCTFR6620 Schneider Electric Detectors, Controller Image 1
CCTFR6620 Schneider Electric Detectors, Controller Image 2
CCTFR6620 Schneider Electric Detectors, Controller Image 3
CCTFR6620 Schneider Electric Detectors, Controller Image 4
CCTFR6620 Schneider Electric Detectors, Controller Image 5
Image may differ
Unit Price (€ / pc.)
409.2648 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
409.26 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
409.2648 €

Connected actuator, CCTFR6620, Schneider Electric

Wiser manifold controls the underfloor heating valves for the Wiser heating control system (Zigbee). Smart multi-zone control system for underfloor heating systems. Up to 64 devices including hub can be connected via one system. 305 x 90 x 65 mm. Modular smart home connection via the Wiser system, APP control on site and remotely, schedules, moments (scenes) and automation via Wiser Home APP. Zigbee 3.0 compatible valve adapter required. Simple wall mounting, additional antenna for Zigbee networking with the home system.

Technical specifications
Version Fußbodenheizungsregler
Assembly Wandmontage
Colour weiß
Suitable for Wiser hub Generation 2
Voltage 24 VAC
min. operating temperature 0 °C
max. operating temperature 50 °C
Degree of protection (IP) IP30
Logistics
Country of origin GB
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei, Bortrioxid
