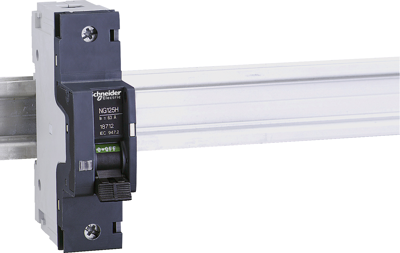

18708 | Schneider Electric
Circuit breaker, 1 pole, C characteristic, 25 A, 125 V (DC), 240 V (AC), screw connection, DIN rail, IP20, 18708
Unit Price (€ / pc.)
81.8601 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
81.86 € *
Price list
Quantity
Price per unit*
1 pcs.
81.8601 €
2 pcs.
79.7538 €
3 pcs.
77.7665 €
*incl. VAT plus shipping costs
**Subject to prior sale
Device circuit breaker, 18708, SCHNEIDER
The 18708 is a low voltage circuit breaker. It is a 1P circuit breaker with 1 protected pole and 25 A in rated current and C tripping curve. The rated short circuit breaking capacity goes up to 36 kA at 220 VAC to 240 VAC conforming to EN/IEC 60947-2 standard. This miniature circuit breaker protects circuits against short circuit and overload current. It is suitable for isolation in the industrial sector.
The fault tripping is indicated by a red mechanical state indicator light on the front face of the circuit breaker. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure.
Features
- Thermal-magnetic
- High breaking capacity
- ON/OFF trip indicator
- Overvoltage category IV
- Protection of the circuit against short-circuit currents
Technical specifications
| Anschluss | Schraubanschluss | |
| Auslösecharakteristik | C | |
| Befestigungsart | DIN-Schiene | |
| Betätiger | Kippbetätiger | |
| Nennspannung (AC) | 240 V | |
| Nennspannung (DC) | 125 V | |
| Nennstrom | 25 A | |
| Polzahl | 1-polig | |
| Schutzart (IP) | IP20 |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85362010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
