XB5AS9442 | Schneider Electric

Emergency stop, key unlocking, mounting Ø  22 mm, unlit, 1 Form B (N/C), XB5AS9442

Order No.: 05P3306
EAN: 4099889257304
MPN:
XB5AS9442
Series: Harmony XB5
Schneider Electric

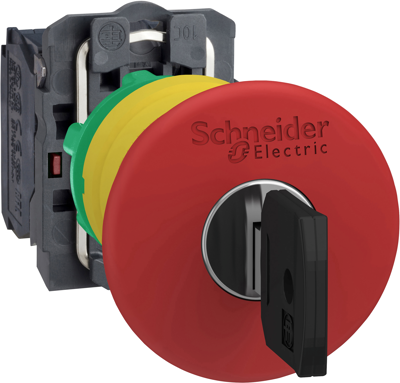

XB5AS9442 Schneider Electric Emergency Stop
Image may differ
Unit Price (€ / pc.)
34.7718 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
34.77 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
34.7718 €

Emergency stop pushbutton, XB5AS9442, SCHNEIDER

The XB5AS9442 is an  emergency stop / shutdown 40mm mushroom head modular red push button operates with a latched key release (key no.455) mechanism and uses screw-clamp terminals. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.

Features

  • Wide modular range to suit machines and operator safety
  • Illuminated types to improve operator efficiency by reducing production downtime
  • Ergonomic design for emergency actuation in several environments
Technical specifications
Type of mounting panel mounting
illuminated No
Collar shape of the front frame round
Installation diameter 22 mm
Height 43 mm
Contact function latching
Resetting key unlocking
Latching switching function 1 Form B (N/C)
Degree of protection (IP) IP66/IP69K
Logistics
Country of origin CZ
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
Sustainable Yes
