XB7NS8444 | Schneider Electric
Emergency stop, rotary release, mounting Ø 22 mm, unlit, 2 Form B (N/C), XB7NS8444
Unit Price (€ / pc.)
18.9567 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
18.96 € *
Price list
Quantity
Price per unit*
1 pcs.
18.9567 €
3 pcs.
18.1356 €
5 pcs.
17.1360 €
10 pcs.
16.2435 €
*incl. VAT plus shipping costs
**Subject to prior sale

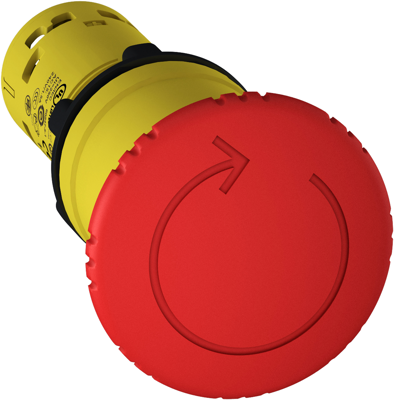

Monolithic emergency stop pushbutton, XB7NS8444, SCHNEIDER
The XB7NS8444 is an emergency stop / shutdown 40mm mushroom head monolithic red push button operates with a latched turn to release mechanism and uses screw-clamp terminals. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.
Features
- Plastic bezel making it ideal for applications requiring good resistance to chemical agents and/or electrical insulation
- Designed to fit in a standard 22mm cut-out ensuring compatibility with pre-existing machinery
Technical specifications
| Type of labeling | rot | |
| Type of mounting | Panelmontage | |
| illuminated | No | |
| Collar shape of the front frame | rund | |
| Installation diameter | 22 mm | |
| Height | 40 mm | |
| Contact function | rastend | |
| Resetting | Dreh-Entriegelung | |
| Latching switching function | 2 Öffner | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | ID |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
