XB7NS9445 | Schneider Electric
Emergency stop, key unlocking, mounting Ø 22 mm, unlit, 1 Form A (N/O) + 1 Form B (N/C), XB7NS9445
Unit Price (€ / pc.)
32.0943 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
32.09 € *
Price list
Quantity
Price per unit*
1 pcs.
32.0943 €
2 pcs.
30.7020 €
3 pcs.
29.0241 €
5 pcs.
27.5128 €
*incl. VAT plus shipping costs
**Subject to prior sale

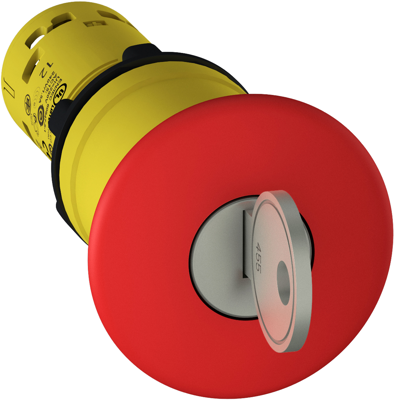

Emergency stop pushbutton, XB7NS9445, SCHNEIDER
The XB7NS9445 is an emergency stop / shutdown 40mm mushroom head monolithic red push button operates with a latched key release (key no.455) mechanism and uses screw-clamp terminals. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.
Technical specifications
| Type of mounting | Panelmontage | |
| illuminated | No | |
| Collar shape of the front frame | rund | |
| Installation diameter | 22 mm | |
| Height | 40 mm | |
| Contact function | rastend | |
| Resetting | Schlüsselentriegelung | |
| Latching switching function | 1 Schließer + 1 Öffner | |
| Degree of protection (IP) | IP20/IP65 |
Download
Logistics
| Country of origin | ID |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
