A9MEM3135 | Schneider Electric
Electric meter, 3 phase, 63A, M-Bus, 1E/1A, MID, (L x W x H) 90 x 69 x 95 mm, A9MEM3135
Unit Price (€ / pc.)
355.5006 € *
Available: 0 pcs.
Leadtime: 1 Week **

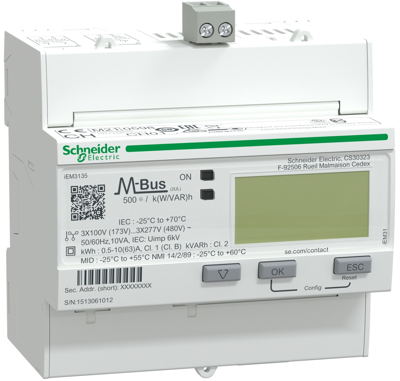

Energy meter, A9MEM3135, Schneider Electric
The A9MEM3135 offers an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. This meter can be used in sub-billing applications and supports 4 tariff schedules. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement. Communication protocol is M-Bus with screw terminal support.
Features
- Compact size of 18mm*5 modules width
- M-bus communication port and digital output for remote monitoring
- Identify energy savings opportunties with precision accuracy of Class 1.0
Technical specifications
| Ausführung | 3-phasig, 63A, M-Bus, 1E/1A, MID | |
| Breite | 69 mm | |
| Höhe | 95 mm | |
| Länge | 90 mm | |
| Produkt-Art | Energiezähler |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 90283090 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
| Nachhaltig | Yes |
