A9D17310 | Schneider Electric
RCBO switch, 3 pole, 10 A, 30 mA, type A, 400 V, A9D17310
Unit Price (€ / pc.)
257.8849 € *
Available: 0 pcs.
Leadtime: On Request **
FI/LS switch, A9D17310, Schneider Electric

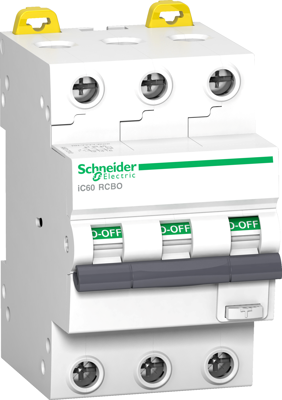

This Acti 9 iC60 RCBO is a modular and reliable residual current breaker with overcurrent protection (RCBO). It is a 3P RCBO with 3 protected poles, rated current is 10A, and operating voltage is 220VAC to 240VAC. Breaking capacity at 220VAC to 240VAC is 10kA according to EN/IEC 61009-2-1. Breaking capacity at 220VAC to 240VAC is 15kA according to EN/IEC 60947-2. Electrical endurance goes up to 10000 cycles, and mechanical endurance goes up to 20000 cycles. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. Device location in system is outgoer, and the earth leakage protection class is type A. This product is compliant with EN/IEC 60947-2 and EN/IEC 61009-2-1.
Technical specifications
| Rated residual current | 30 mA | |
| Rated Voltage | 400 V | |
| Rated current | 10 A | |
| Fault current type | A | |
| Assembly | DIN rail | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP20/IP40 |
Download
Logistics
| Country of origin | PT |
| Customs tariff number | 85362010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
