A9D67316 | Schneider Electric

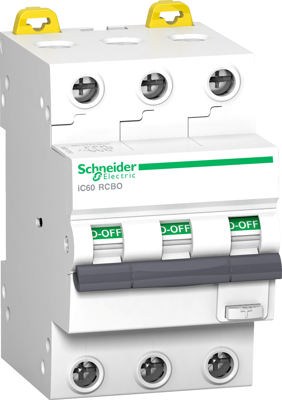

RCBO switch, 3 pole, 16 A, 30 mA, type A, 400 V, A9D67316
Unit Price (€ / pc.)
211.9509 € *
Available: 0 pcs.
Leadtime: On Request **
FI/LS switch, A9D67316, Schneider Electric
This Acti 9 iC60 RCBO is a modular and reliable residual current breaker with overcurrent protection (RCBO). It is a 3P RCBO with 3 protected poles, rated current is 16A, and operating voltage is 380VAC to 415VAC. Breaking capacity at 280VAC to 415VAC is 6kA according to EN/IEC 61009-2-1 and EN/IEC 60947-2. Electrical endurance goes up to 10000 cycles, and mechanical endurance goes up to 20000 cycles. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. Device location in system is outgoer, and the earth leakage protection class is type A. This product is compliant with EN/IEC 60947-2 and EN/IEC 61009-2-1.
Technical specifications
| Rated residual current | 30 mA | |
| Rated Voltage | 400 V | |
| Rated current | 16 A | |
| Fault current type | A | |
| Assembly | DIN rail | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP20/IP40 |
Download
Logistics
| Country of origin | PT |
| Customs tariff number | 85362010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
