A9D69632 | Schneider Electric

RCBO switch, 1 pole + N, 32 A, 300 mA, type A, 230 V, A9D69632

Order No.: 01P7167
EAN: 4099889162295
MPN:
A9D69632
A9D69632 Schneider Electric FI Circuit Breakers

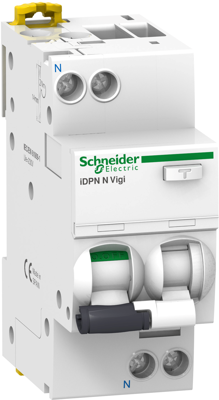

Image may differ
Unit Price (€ / pc.)
143.5378 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
143.54 € *
Price list
Quantity
Price per unit*
1 pcs.
143.5378 €
2 pcs.
139.8607 €
3 pcs.
136.3621 €
*incl. VAT plus shipping costs
**Subject to prior sale

FI/LS switch, A9D69632, Schneider Electric

This Acti9 iDPN Vigi is a modular residual current breaker with overcurrent protection (RCBO). It has 2P with 1 protected pole, 32A rated current and B tripping curve. This A type device has 300mA sensibility. Breaking capacity at 230VAC is 6000A according to IEC 61009-1. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. Its earth fault indicator on front face allows quick identification of the type of default. It brings safety and reliable solution for commercial and industrial applications. This product is compliant with EN/IEC 61009-2-1 standard. It offers 2 VisiTrip window to reduce intervention time and VisiSafe for safe intervention. The Ue operational voltage is 220VAC to 240VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product color is white (RAL9003). The dimensions are (W) 36mm x (H) 85mm x (D) 73mm. The weight is 125g. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C.

Technical specifications
Bemessungsfehlerstrom 300 mA
Bemessungsspannung 230 V
Bemessungsstrom 32 A
Fehlerstromart A
Montage DIN-Schiene
Polzahl 1-polig + N
Schutzart (IP) IP20/IP40
Logistics
Ursprungsland ES
Zolltarifnummer 85362010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
Nachhaltig Yes
