DF101N | Schneider Electric

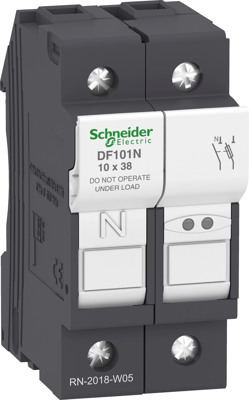

Fuse holder, 10 x 38 mm, 32 A, 690 V, DIN rail, DF101N
Unit Price (€ / pc.)
26.7393 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
26.74 € *
Price list
Quantity
Price per unit*
1 pcs.
26.7393 €
2 pcs.
25.5731 €
3 pcs.
24.1689 €
6 pcs.
22.9194 €
*incl. VAT plus shipping costs
**Subject to prior sale
Fuse holder, DF101N, Schneider Electric
TeSys DF modular fuse carrier, 2 poles (1P+N) , for protection of control circuits up to 32A/690V. To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA@400V. It provides a Neutral pole fitted with a locked tubular link. Compact (35mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Fuse links (10x38mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (IEC, UL recognized, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
Technical specifications
| Anschluss | Schraubanschluss | |
| Befestigungsart | DIN-Schiene | |
| Für Sicherung | 10 x 38 mm | |
| Nennspannung | 690 V | |
| Nennstrom | 32 A | |
| Schutzart (IP) | IP20 |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85361050 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
| Nachhaltig | Yes |
