DF142 | Schneider Electric
Fuse holder, 14 x 51 mm, 50 A, 690 V, DIN rail, DF142
Unit Price (€ / pc.)
37.842 € *
Available: 0 pcs.
Leadtime: On Request **

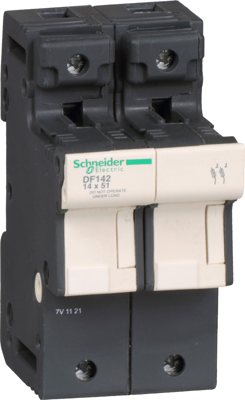

Fuse holder, DF142, Schneider Electric
TeSys DF modular fuse carrier, 2 poles (2P), for protection of control circuits up to 50A/690V. To be used with 14x51mm fuse links up to 50A and short circuit current up to 120kA@400V. Compact (53mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links (14x51mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 3 units. Multi standards certified (IEC, UL recognized, CSA, EAC), Green Premium product (RoHS/REACh).
Technical specifications
| Connection | screw connection | |
| Type of mounting | DIN rail | |
| For Fuse | 14 x 51 mm | |
| Rated voltage | 690 V | |
| Rated current | 50 A | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85361050 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
