DF223VC | Schneider Electric
Fuse holder, 22 x 58 mm, 125 A, 690 V, DIN rail, DF223VC
Unit Price (€ / pc.)
83.7760 € *
Available: 0 pcs.
Leadtime: On Request **

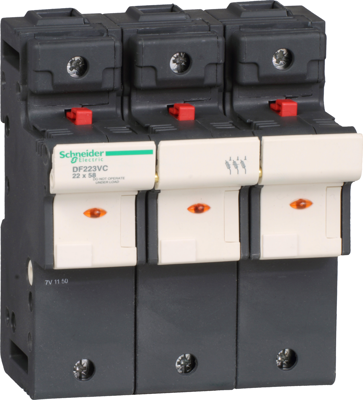

Fuse holder, DF223VC, Schneider Electric
TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 125A/690V. To be used with 22x58mm fuse links with stricker up to 125A and short circuit current up to 120kA@400V. To be equipped with an early break auxiliary contact module DF22AM* (to be ordered separately), it provides blown fuse indication by LED. Compact (105mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links with stricker (22x58mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 2 units. Multi standards certified (IEC, UL recognized, CSA, EAC), Green Premium product (RoHS/REACh).
Technical specifications
| Connection | screw connection | |
| Type of mounting | DIN rail | |
| For Fuse | 22 x 58 mm | |
| Rated voltage | 690 V | |
| Rated current | 125 A | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85361090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
