19071 | Schneider Electric
Auxiliary switch, 2 Form C (NO/NC), for NG125/FI-Block Vigi NG125, 19071
Unit Price (€ / pc.)
37.8063 € *
Available: 0 pcs.
Leadtime: On Request **

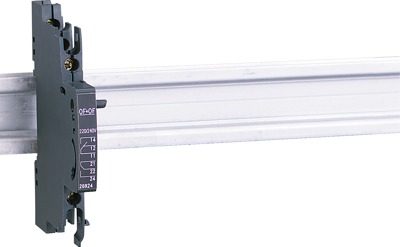

Auxiliary switch, 19071, Schneider Electric
This Acti 9 NG125 electrical auxiliary is a double open/close contact mounted on DIN rail. It is dedicated to Acti 9 NG125, NG125NA and NG125LMA. It is used for remote indication of the position of the associated device. The 2 contacts changeover indicates "open" or "closed" position of the associated device. The width in 9mm pitches is 1. The operating frequency is 50Hz or 60Hz. It also works on direct current. The In rated operational current is from 1A (mini) up to 6A (maxi) depending on the rated voltage. The Ue rated operational voltage is up to 415VAC and 130VDC. The operating temperature is -25°C to + 60°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.
Technical specifications
| Version | 2 Form C (NO/NC) | |
| Suitable for | NG125/FI-Block Vigi NG125 | |
| Accessory Type | auxiliary switch |
Download
Logistics
| Country of origin | BE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
