33004 | Schneider Electric

Auxiliary contact, 1 Form B (N/C) + 1 Form A (N/O), for Compact NS630b..1600/NS1600b..3200/INS/INV/NSX/NSX DC/Easypact CVS/Powerpact Multistandard, 33004

Order No.: 01P4079
EAN: 4099889160055
MPN:
33004
Schneider Electric
33004 Schneider Electric Fuses Accessories
Image may differ
Unit Price (€ / pc.)
32.5703 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
32.57 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
32.5703 €

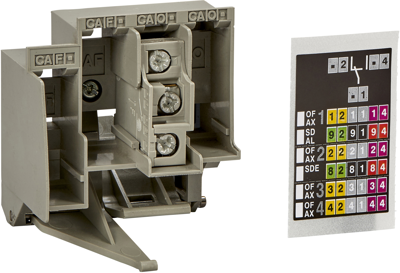

Auxiliary contact, 33004, Schneider Electric

It's a single standard auxiliary contact that provides SD remote information of the circuit breaker status. The SD contact (trip indication) indicates that the circuit breaker has tripped. This auxiliary is a common point changeover type contact with 1 normally open contact and 1 normally closed contact. The rated current is 6 A and the minimum load is 100 mA at 24 VDC. It complies with IEC 60947-5-1 standard.

Technical specifications
Version 1 Form B (N/C) + 1 Form A (N/O)
Suitable for Compact NS630b..1600/NS1600b..3200/INS/INV/NSX/NSX DC/Easypact CVS/Powerpact Multistandard
Accessory Type auxiliary contact
Logistics
Country of origin NL
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
