A9A26971 | Schneider Electric
Undervoltage release, 380/415 VAC, 50/60 Hz, for Acti9 iC60/iID/iDPN Vigi/iSW-NA, A9A26971
Unit Price (€ / pc.)
112.2051 € *
Available: 0 pcs.
Leadtime: On Request **

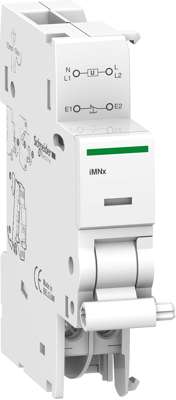

Undervoltage release, A9A26971, Schneider Electric
This Acti9 iMN electrical auxiliary is an instantaneous undervoltage release. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA. It prevents device closing again until its input voltage has been restored. The width in 9mm pitches is 2. The Uc control circuit voltage is 380…415VAC. It can be mounted on a DIN rail for modular installation. The product color is white (RAL9003). The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.
Technical specifications
| Version | 380/415 VAC, 50/60 Hz | |
| Suitable for | Acti9 iC60/iID/iDPN Vigi/iSW-NA | |
| Accessory Type | Undervoltage release |
Download
Logistics
| Country of origin | BE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
