Rotary actuator, A9A27005, Schneider Electric

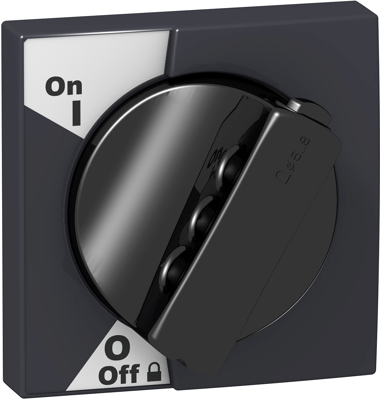

This Acti 9 rotary handle for front or side-mounted control is black. This mounting accessory is suitable for iC60 (2P, 3P, 4P), iSW (2P, 3P, 4P), iC60+vigi (2P, 3P, 4P), iID, iSW-NA. The rotary handle is fixed on the front or the side of the enclosure. It prevents the door from opening when the device is in On position but it can desactivated by adaptation. It is a set of 1 device. The front-mounted is possible on door or faceplate. It can be padlocked when the device is in the Open position or Closed position with adaptation. A pushbutton for iID test is available in the front face of the rotary handle. The degree of protection is IP55. The 5 mm to 8 mm diameter padlock is not supplied with the device. The dimensions of the front face of the rotary handle are (W) 75 mm x (H) 75 mm. The operating temperature is -25°C to + 55°C.
