A9L65102 | Schneider Electric

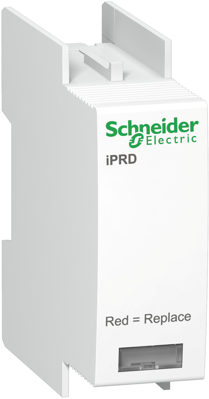

Replacement protection module, C65-350, for surge arrester iPRD65r, A9L65102

Order No.: 01P7978
EAN: 4099889170825
MPN:
A9L65102
Series: Acti 9 iPRD
Schneider Electric
A9L65102 Schneider Electric Fuses Accessories
Image may differ
Unit Price (€ / pc.)
72.1854 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
72.19 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
72.1854 €

Spare protection module, A9L65102, Schneider Electric

This Acti9 product is a cartridge C65-350 for surge arrester iPRD. The Imax maximum discharge current is 65 kA. The In nominal discharge current is 20 kA. This product is compatible with TT and TN earthing system. This Type 2 device autoprotected by integrated circuit-breaker is recommended for moderate risk level in incoming panel board. The Uc maximum continuous operating voltage is 350VAC. The Up Voltage protection level is 1.5 kV. It can be plugged into a surge protecting device module. Its width is 57 mm pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 18 mm x (H) 57 mm x (D) 56 mm. According to IEC 60529 standard, the degree of protection is IP20 or IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. It is compliant with IEC 61643-1 and EN 61643-11 standards.

Technical specifications
Version C65-350
Suitable for surge arrester iPRD65r
Accessory Type replacement protection module
Logistics
Country of origin CN
Customs tariff number 85363090
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Sustainable Yes
