A9L65122 | Schneider Electric

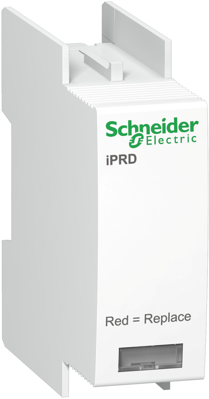

Replacement protection module, C65-460, for surge arrester iPRD40r IT, A9L65122

Order No.: 01P7980
EAN: 4099889170832
MPN:
A9L65122
Series: Acti 9 iPRD
Schneider Electric
A9L65122 Schneider Electric Fuses Accessories
Image may differ
Unit Price (€ / pc.)
74.3274 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
74.33 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
74.3274 €

Spare protection module, A9L65122, Schneider Electric

This Acti9 product is a cartridge C65-460 for surge arrester iPRD - IT. The Imax maximum discharge current is 65 kA. The In nominal discharge current is 20 kA. This product is compatible with IT earthing system. This Type 2 device autoprotected by integrated circuit-breaker is recommended for moderate risk level in incoming panel board. The Uc maximum continuous operating voltage is 460VAC. The Up Voltage protection level is 2 kV. It can be plugged into a surge protecting device module. Its width is 60 mm pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 18 mm x (H) 60 mm x (D) 60 mm. According to IEC 60529 standard, the degree of protection is IP20 or IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 80°C. It is compliant with IEC 61643-1 and EN 61643-11 standards.

Technical specifications
Version C65-460
Suitable for surge arrester iPRD40r IT
Accessory Type replacement protection module
Logistics
Country of origin CN
Customs tariff number 85363090
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
Sustainable Yes
