LUCAX6ES | Schneider Electric
Standard control unit, LUC A, class 10, 0.15-0.6 A, 48-72 V DC/AC, for power socket LUB12/LUB32/LUB38/LUB120/LUB320/LUB380/reversing contactor switch LU2B12ES/LU2B32ES, LUCAX6ES
Unit Price (€ / pc.)
79.2302 € *
Available: 0 pcs.
Leadtime: On Request **

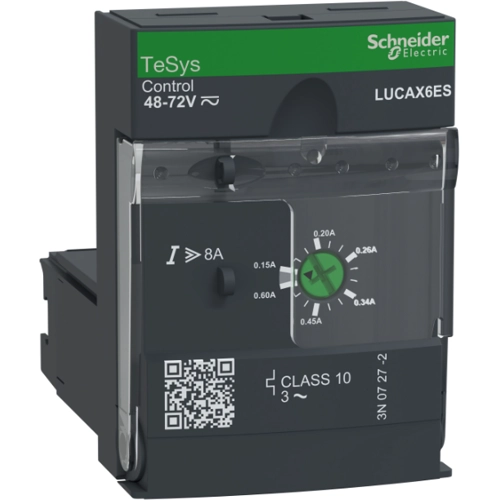

Standard control unit, LUCAX6ES, Schneider Electric
TeSys U standard control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 0.09 kW@400 V. It provides full protection to motors with a rated current Ir 0.15-0.6 A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 48 VAC/48-72 VDC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Technical specifications
| Version | LUC A, class 10, 0.15-0.6 A, 48-72 V DC/AC | |
| Suitable for | power socket LUB12/LUB32/LUB38/LUB120/LUB320/LUB380/reversing contactor switch LU2B12ES/LU2B32ES | |
| Accessory Type | Standard control unit |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85363010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) |
| Sustainable | Yes |
