LUFN20 | Schneider Electric
Auxiliary switch module, 2 Form A (N/O), for LUB12/LUB32/LUB38/LUB120/LUB320/LUB380, LUFN20
Unit Price (€ / pc.)
14.5180 € *
Available: 0 pcs.
Leadtime: On Request **

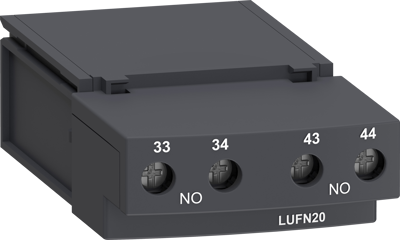

Auxiliary switch module, LUFN20, Schneider Electric
TeSys U auxiliary signaling contacts module to be inserted in standard power bases LUB12, LUB32, LUB38 or advanced power base LUB120, LUB320, LUB380. It indicates the ON/OFF running status of the motor, whatever the direction of rotation. It provides 2NO instantaneous auxiliary contacts rated 24-250V AC/DC 5A max. It is powered by the control unit. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Technical specifications
| Version | 2 Form A (N/O) | |
| Suitable for | LUB12/LUB32/LUB38/LUB120/LUB320/LUB380 | |
| Accessory Type | auxiliary switch module |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
