13182 | Schneider Electric

Polymer module enclosure, (L x W x H) 160 x 448 x 460 mm, light gray (RAL 7035), IP65/IK09, 13182

Order No.: 06P7963
EAN: 3303430131823
MPN:
13182
13182 Schneider Electric General Purpose Enclosures
Image may differ
Unit Price (€ / pc.)
200.4436 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
200.44 € *
Price list
Quantity
Price per unit*
1 pcs.
200.4436 €
2 pcs.
195.5527 €
*incl. VAT plus shipping costs
**Subject to prior sale

Enclosure for socket outlet, 13182, Schneider Electric

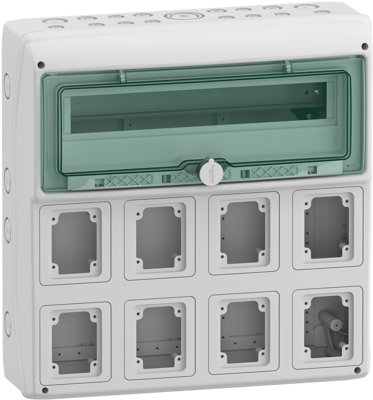

This Kaedra weatherproof enclosure is a surface mounted enclosure for industrial power outlet. It is composed of 1 row of 18 modules of 18 mm. It can accomodate all types of modular switchgear. There are 8 openings for industrial or domestic power outlets, buttons or indicator lights. The IP degree of protection is IP65. This enclosure is dedicated to indoor or outdoor waterproof installation. It is provided with a transparent green door for modular devices. The colour of enclosure is light grey (RAL 7035). It is intended for installation in residential, small buildings and industry.

The cables can enter by the top or the bottom of the enclosure via 17 pre-cutouts. It is equipped with a back plate and a front cover with notch. It is provided with DIN rail, 8 plates for 65 x 85 mm power outlets and 2 plates for push-button control. It comes with 1 terminal block. The terminal blocks have 16 outgoers. A marking kit are also delivered within the product. The electrical insulation class is class II (double insulated). The overvoltage category is class II. The dissipated power is 39 W. The In rated current is up to 90 A. This product complies with IEC 61439-3 standard. The dimensions are (W) 448 mm x (H) 460 mm x (D) 160 mm. The product weight is 3.4 kg. The material is a self-extinguishing polymer material. Its resistance to flames and to abnormal heat is 650°C as per IEC 60695-2-1. It is ultraviolet resistant. The IK degree of protection is IK09. The operating temperature is -25°C to 40°C.

Technical specifications
Breite 448 mm
Farbe lichtgrau
Höhe 460 mm
Länge 160 mm
Material Polymer
RAL-Farbnummer 7035
Schutzart (IP) IP65/IK09
Logistics
Ursprungsland IT
Zolltarifnummer 85381000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
