NSYPLS3654AG | Schneider Electric

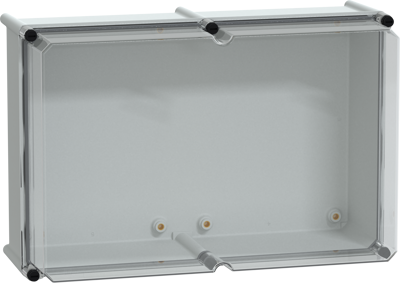

Polyester enclosure, (L x W x H) 360 x 540 x 230 mm, light gray (RAL 7035), IP66, NSYPLS3654AG

Order No.: 02P2047
EAN: 3606480776984
MPN:
NSYPLS3654AG
Series: THALASSA PLS
Schneider Electric
NSYPLS3654AG Schneider Electric General Purpose Enclosures
Image may differ
Unit Price (€ / pc.)
90.0116 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
90.01 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
90.0116 €

Polyester enclosure, NSYPLS3654AG, Schneider Electric

Thalassa PLS box polyester rear with transparent PC cover. Insulating modular box. One piece moulded body. Wall mounted. High transparent cover locking screw removable. Polyester reinforced with fibreglass rear, polycarbonate cover. Grey RAL 7035. IP65, IK09, 960 °C fire resistance. Insulation Class II.

Technical specifications
Width 540 mm
Colour light gray
Height 230 mm
Length 360 mm
Material polyester
RAL number 7035
Degree of protection (IP) IP66
Logistics
Country of origin ES
Customs tariff number 85381000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Sustainable Yes
