NSYSBM151512 | Schneider Electric

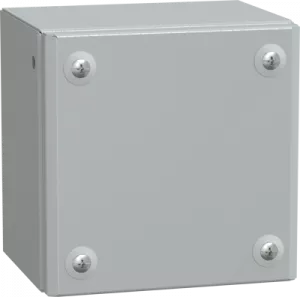

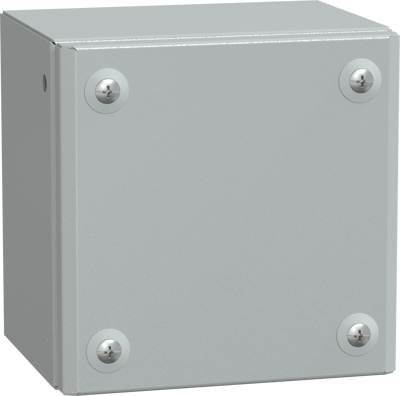

Steel enclosure, (L x W x H) 150 x 150 x 120 mm, light gray (RAL 7035), IP66, NSYSBM151512

Order No.: 02P2504
EAN: 3606480520105
MPN:
NSYSBM151512
Series: Spacial SBM
NSYSBM151512 Schneider Electric General Purpose Enclosures

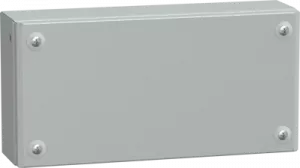

Image may differ
Unit Price (€ / pc.)
30.9519 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
30.95 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
30.9519 €

Steel enclosure, NSYSBM151512, Schneider Electric

Spacial SBM steel industrial box is designed for multi-purpose applications. It is certified by LR, DNV-GL, UL and BV and is suitable for wall mounting. The enclosure has a nominal height, width and depth of 150 mm, 150 mm and 120 mm, respectively. It is made of sheet steel with a grey color (RAL 7035) and a polyester powder surface finish. The box consists of 4 cover screws, a cover and a body.

It has a captive screw PZ2 outside the sealed area and the cover can be removed for maintenance purposes, the net weight of the enclosure is 1,306 kg. It offers high impact resistance with an IK10 (IEC62262) rating and is dust and water-resistant with an IP66 rating (IEC60529). It conforms to IEC 62208 standards and has an ambient air temperature range of -35-60 °C (storage) and -35-80 °C (operation) Protection IP 66, IK10.

Technical specifications
Breite 150 mm
Farbe lichtgrau
Höhe 120 mm
Länge 150 mm
Material Stahl
RAL-Farbnummer 7035
Schutzart (IP) IP66
Logistics
Ursprungsland IN
Zolltarifnummer 94032080
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
Nachhaltig Yes
