NSYSBM15158 | Schneider Electric

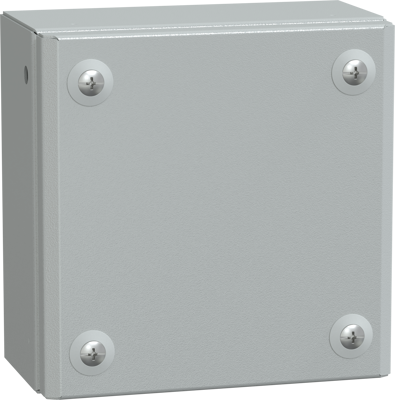

Steel enclosure, (L x W x H) 150 x 150 x 80 mm, light gray (RAL 7035), IP66, NSYSBM15158

Order No.: 02P2505
EAN: 3606480520013
MPN:
NSYSBM15158
Series: Spacial SBM
NSYSBM15158 Schneider Electric General Purpose Enclosures
Image may differ
Unit Price (€ / pc.)
31.0709 € *
Available: 3 pcs.
Leadtime: On Request **
Total Price:
31.07 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
31.0709 €

Steel enclosure, NSYSBM15158, Schneider Electric

Spacial SBM steel industrial box is designed for a multi-purpose application This box is certified by LR, DNV-GL, UL and BV and is wall mounted. It has a nominal height, width and depth of 150 mm, 150 mm and 80 mm, respectively. It is made of sheet steel with a grey color (RAL-7035) and a polyester powder surface finish It consists of 4 cover screws, a cover and a body. The body is a single piece folded and welded and the cover is Fixed with a half turn metal screw.

The box has a captive screw PZ2 outside the sealed area and the cover can be removed for maintenance purposes, the net weight of the enclosure is 1,114 kg and it has an IK10 (IEC62262) and IP66 rating (IEC60529) The ambient air temperature for storage and operation is -35-60°C and -35-80°C respectively This device is qualified as a green premium product, with minimal use of harzardous substances.

Technical specifications
Breite 150 mm
Farbe lichtgrau
Höhe 80 mm
Länge 150 mm
Material Stahl
RAL-Farbnummer 7035
Schutzart (IP) IP66
Logistics
Ursprungsland IN
Zolltarifnummer 85381000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
Nachhaltig Yes
