Steel enclosure, NSYSBM15208, Schneider Electric

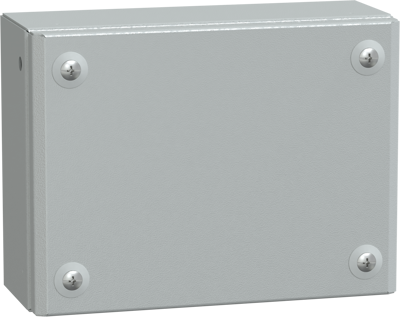

Spacial SBM steel industrial box for a multi-purpose application. It is designed for use in harsh environments. It has an IK10 rating (IEC62262) and an IP66 rating (IEC60529) for high resistance to dust and water. The box has a nominal height, width and depth of 150 mm, 200 mm and 80 mm, respectively. It is made of sheet steel in grey color (RAL-7035) with a polyester powder surface finish It consists of 4 cover screws, a cover and a body with a captive screw PZ2 outside the sealed area.
The cover can be removed for maintenance purposes, the net weight of the enclosure is 1,312 kg. It meets the standards of IEC 62208 and has an ambient air temperature for storage of -35-60 °C and for operation of -35-80 °C Made sheet of steel with polyester powder finish. Protection IP 66, IK10.
